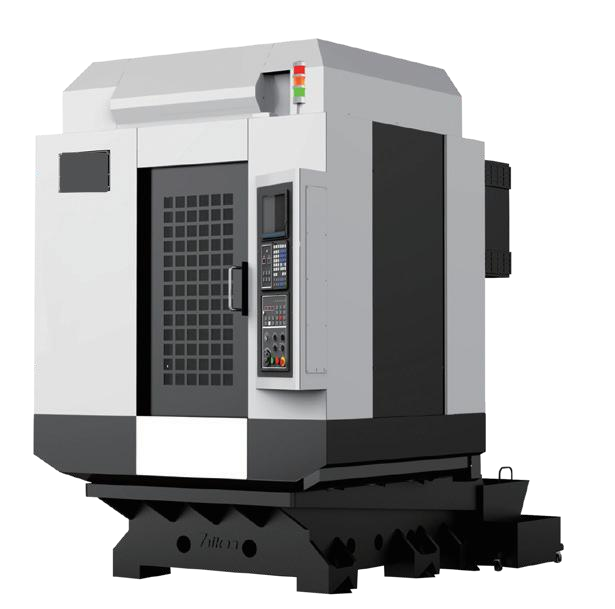

B Series Drilling & Tapping Machining Center High-speed High-efficiency High-precision

The machine has various specifications with X-axis travel from 500mm to 2,000mm, which can meet various machining requirements.
Equipped with direct-spindle and motorized spindle options, with maximum speeds of 12,000rpm, 2,0000rpm, and 24,000rpm.
21T/26T/30T/40T tool magazine options improve tool handling capabilities and promote process intensiveness.
It is particularly good at 3C (computer, communication, and consumer electronics) parts processing, and is also widely used in miling
drilling, and tapping processing of parts in various industries.

Description

Item	Unit	T-500B	T-500BH	T-500B Plus	T-600B	T-700B
Table size	mm	620×400	620×400	620×400	700×400	800×400
X/Y/Z axis travel	mm	500/400/320	500/400/460	500/400/320	600/390/320	700/400/320
Spindle speed	r/min	20-24,000	20-24,000	20-20,000	20-20,000	20-20,000
Tool shank	/	BT30	BT30	BT30	BT-30	BT-30
Tool capacity	PCS	21	21	21	21	21
X/Y/Z axis rapid traverse speed	m/min	48/48/48	48/48/48	48/48/48	48/48/48	48/48/48

Item	Unit	T-1000	T-1200	T-1300	T-1600	T-1800	T-2,000
Table size	mm	1,200×600	1,300×650	1,300×650	1,700×650	1,900×650	2,000×650
X/Y/Z axis travel	mm	1,100/650/410	1,200/650/410	1,300/650/410	1,600/650/475	1,800/650/475	2,000/650/475
Spindle speed	r/min	20-20,000	20-20,000	20-20,000	20-20,000	20-20,000	20-20,000
Tool shank	/	BT-30	BT-30	BT-30	BT-30	BT-30	BT-30
Tool capacity	PCS	21	21	21	21	21	21
X/Y/Z axis rapid traverse speed	m/min	36/36/36	36/36/36	36/36/36	30/36/36	30/36/36	27/36/36
