Description
| Item | Unit | DH-63 |
|---|---|---|
| Pallet size | mm | 630×630 |
| X/Y/Z three-axis travel | mm | 1,050/800/1,000 |
| Max.workpiece size | mm | ø1,000×1,000 |
| Max.spindle speed | r/min | 10,000 |
| Tool holder specifications | / | BT50 |
| Tool capacity | T | 60 |

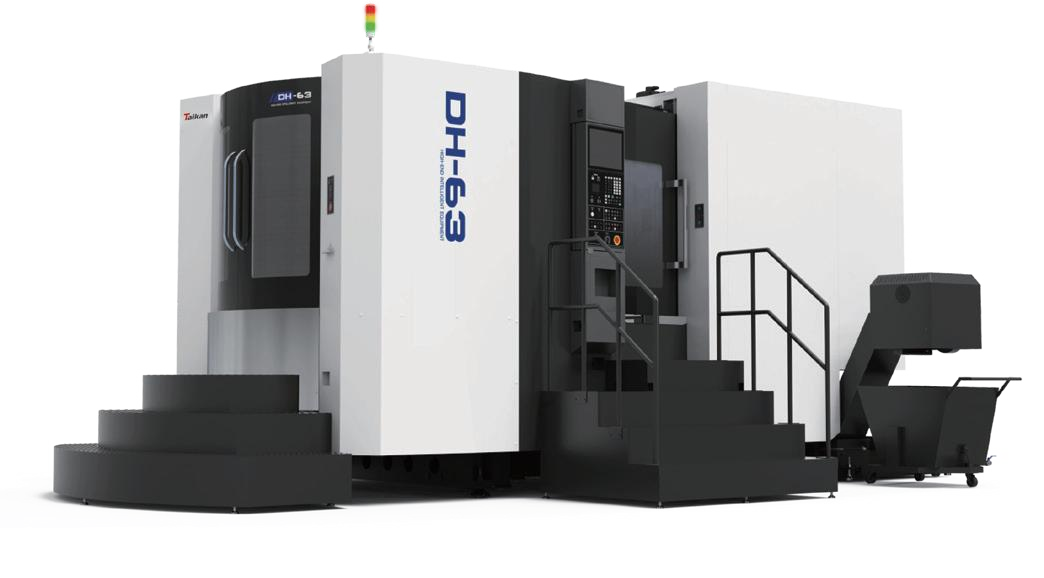

DH Series Horizontal Machining Center
- High-rigidity positive T-type bed structure, equipped with double worktable APC device and double servo motor tool magazine to improve efficiency.
