Description

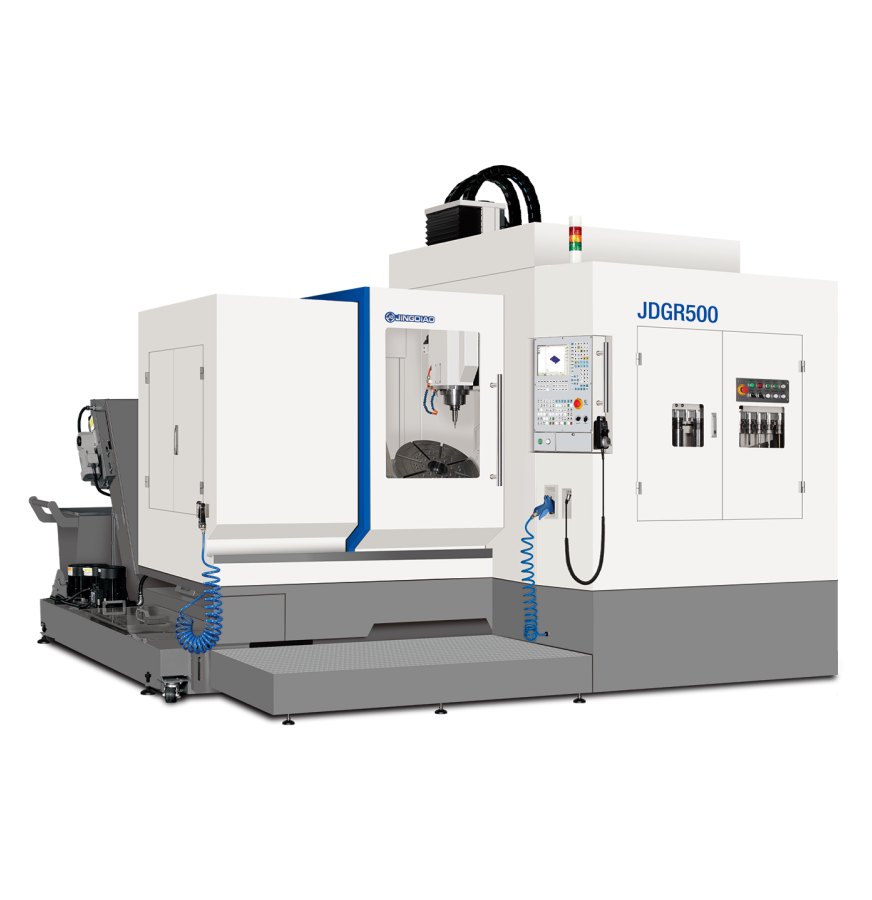

The JDGR500 is a high-speed, precision-engraving, five-axis machining center ideal for drilling, milling, and grinding complex hard metal materials (HRC > 50). It consistently achieves 5-15 μm machining accuracy, enabling micro-milling of fine features while meeting high-volume machining requirements.
X/Y/Z-axis travel: 550/770/450mm
A/C-axis travel: (-115° to +90°)/360°
Worktable diameter: Ø500mm
Worktable load capacity: 300kg
