Description

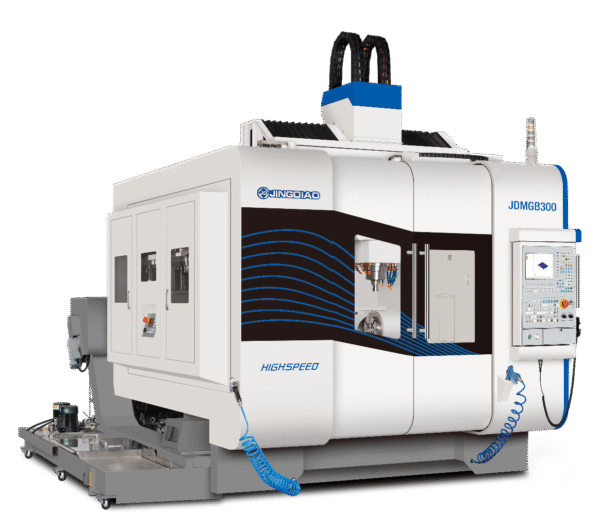

JDMGB300
This high-speed, five-axis machining center is suitable for precision machining of blades and slender shafts, including five-axis simultaneous machining or positioning.
It features a moving beam gantry structure with dual A-axis designs, each with independent drive. The distance between the two A-axis tables can be adjusted from 250 to 550 mm, and can accommodate workpieces up to φ220 mm in diameter.
X/Y/Z travel: 650 × 500 × 500 mm.
A/B axis rotation: 360° / -45° to 45°.
Worktable diameter: φ200 mm.
Maximum workpiece size: Φ320 × 550 mm.
Distance between the two A-axis tables: 250-550 mm.
