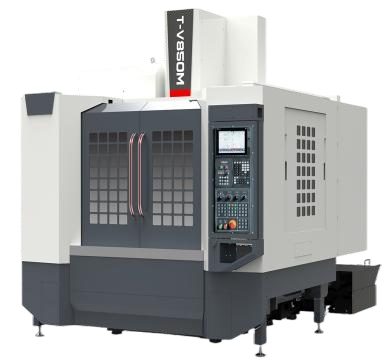

M Series High Rigidity Vertical Machining Center

1. Extra-large and heavy base design, built-in anchor support structure, low center of gravity design, excellent vibration reduction performance, full rigidity and stability;
2. Large-span and high-rigidity herringbone columns, double-layer wall panel structure at the bottom, combined with a reinforced three-layer wall panel structure of the spindle box, and a 6-slide roller guide design on the Z axis, strong anti-deformation ability in heavy cutting and high precision retention;
3. 8000-rpm belt spindle is used, which has strong cutting rigidity.

Description

Project	Unit	T-V850M	T-850LM	T-V1165M	T-1165LM
Table size	mm	1000*550	1000*550	1200*650	1200*650
X/Y/Z three-axis travel	mm	850/550/550	850/520/550	1100/650/600	1100/650/600
Distance from spindle nose to table	mm	150-700	150-700	150-750	150-750
T-slot of table (number of slots - slot width "pitch")	mm	5-18*100	5-18*100	5-18*100	5-18*100
Spindle speed	r/min	8000(belt)	8000(belt)	8000(belt)	8000(belt)
Spindle taper	/	BT-40	BT-40	BT-40	BT-40
X/Y/Z three-axis rapid shift rate	m/min	36/36/30	30/30/20	36/36/30	30/30/20
Tool magazine capacity	Bit	24	24	24	24
Tool weight	kg	7	7	7	7
Tool length	mm	250	250	250	250
