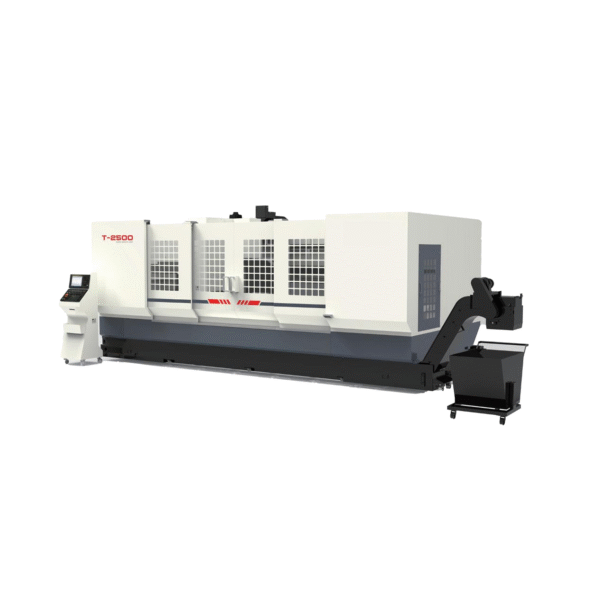

T SeriesMoving ColumnProfile Machining Center BT30 (Tilt-disc Tool Magazine)

T SeriesMoving ColumnProfile Machining Center BT30 (Tilt-disc Tool Magazine)

  • Fixed table, column-moving structure; equipped with a BT30 direct-drive spindle and 21Ttilt-disc tool magazine, enabling high-speed tool change.
  • With a maximum X-axis travel of 6,500 mm and a rapid traverse speed of up to 50 m/min,this machine is designed for processing large, narrow, and long workpieces.
  • The X-axis can be optionally driven by either a rack-and-pinion or a ball screw drive.
Category:

Description

ItemUnitT-2500T-4500T-6500
Table sizemm2,500×4004,500×4006,500×400
X/Y/Z axis travelmm2,500/400/3504,500/400/3506,500/400/350
Max.spindle speedr/min12,00012,00012,000
Tool holder specifications/BT30BT30BT30
Tool capacityPCS212121
X/Y/Z axis rapid traverse speedm/min50/30/3650/30/3650/30/36
