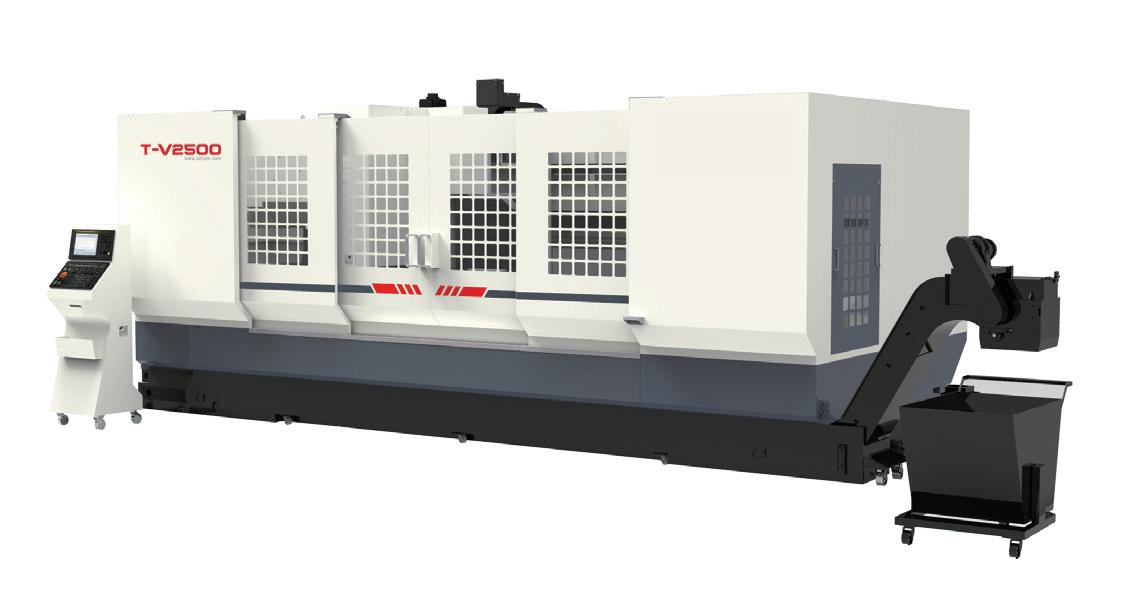

V SeriesMoving ColumnProfile Machining Center BT 40 (disc type magazine)

V SeriesMoving ColumnProfile Machining Center BT 40 (disc type magazine)

  • Fixed table, column-moving structure; equipped with a BT40 direct-drive spindle and 24Tdisc tool magazine.
  • With a maximum X-axis travel of 6,500 mm and a rapid traverse speed of up to 50 m/min,this machine is designed for processing large, narrow, and long workpieces.
  • The X-axis can be optionally driven by either a rack-and-pinion or a ball screw drive.
Category:

Description

ItemUnitT-V2500T-V4500T-V6500
Table sizemm2,500×5504,500×5506,500×550
X/Y/Z axis travelmm2,500/550/5504,500/550/5506,500/550/550
Max.spindle speedr/min12,00012,00012,000
Tool holder specifications/BT40BT40BT40
Tool capacityPCS242424
X/Y/Z axis rapid traverse speedm/min50/28/2850/28/2850/28/28
